Enhance the capabilities of your Modal Shop portable calibrator with our full line of specialized mounting kits. Designed specifically for proximity probe calibration, these accessories provide flexible and secure mounting solutions for a wide range of probe types.
Each kit includes precision-engineered mounting brackets that accommodate probe thread diameters from 0.25 in to 0.75 in (6 mm to 18 mm), making it easy to calibrate probes of various sizes.
Compatible with all major probe manufacturers, our mounting kits ensure reliable, accurate calibrations—no matter the brand. Whether you're working in the field or in the lab, these accessories expand the functionality of your portable calibrator, making it an indispensable tool for any vibration or condition monitoring program.
The table below lists the most common thread sizes (not tip diameter) used by leading manufacturers. These thread dimensions are critical in selecting the correct mounting bracket adapter kit.
Please complete all dropdown fields so we can show the mounting kits that best match your probe and application.
| Mounting Kits | Description |
|---|---|
9100-PPA01
| Proximity probe adaptor kit for thread diameters 1/4 inch to 3/8 inch (6 mm to 10 mm). Includes micrometer (english), probe bar, (2) 3 1/4 inch spacers, (2) 1 inch spacers, 8 mm, 10 mm and 3/8 inch probe brackets, 6 mm and 1/4 inch reducers, (6) 1 inch set screws, (2) hex wrenchs, and 9100-PPA02 nickel plated 4140 steel target
|
9100-MPPA01
| Proximity probe adaptor kit for thread diameters 1/4 inch to 3/8 inch (6mm to 10mm). Includes micrometer (metric), probe bar, (2) 3 1/4 inch spacers, (2) 1 inch spacers, 8 mm, 10 mm and 3/8 inch probe brackets, 6 mm and 1/4 inch reducers, (6) 1 inch set screws, (2) hex wrenchs, and 9100-PPA02 nickel plated 4140 steel target
|
9100-PPA01D
| Proximity probe adaptor kit for thread diameters 1/4 inch to 3/8 inch (6mm to 10mm). Includes digital micrometer (english/metric), probe bar, (2) 3 1/4 inch spacers, (2) 1 inch spacers, 8 mm, 10 mm and 3/8 inch probe brackets, 6 mm and 1/4 inch reducers, (6) 1 inch set screws, (2) hex wrenchs, and 9100-PPA02 nickel plated 4140 steel target
|
9100-PPA05
| Proximity probe accessory for thread diameters 1/2 inch to 5/8 inch (14 mm to 16 mm). Requires 9100-PPA01, 9100-MPPA01, or 9100-PPA01D proximity probe mounting kit. This product is an optional accessory kit. Includes probe bar (1 1/4 inch), 14 mm, 16 mm, 1/2 in, and 5/8 inch probe brackets, and 4140 steel target.
|
9100-PPA16
| Proximity probe accessory for thread diameter 3/4 inch (18 mm) Requires 9100-PPA01, 9100-MPPA01, or 9100-PPA01D proximity probe mounting kit. This product is an optional accessory kit. Includes probe bar (1 1/4 inch) 18 mm and 3/4 inch probe brackets.
|
9100-PPASH
| Proximity probe mounting Accessory Used to test proximity probes mounted in a probe holder. Can also test proximity probes with 6-10 mm case threads. Accommodates 1/2 inch diameter housing, holder, sleeve or stinger. Includes probe holder tower, fork support, 2 finger set screws, probe clamp (1/2 in), digital micrometer (spindle), micrometer bracket, 4140 steel target.
|
If you don’t find a match inch the table, contact us — we offer additional options and can develop a custom solution

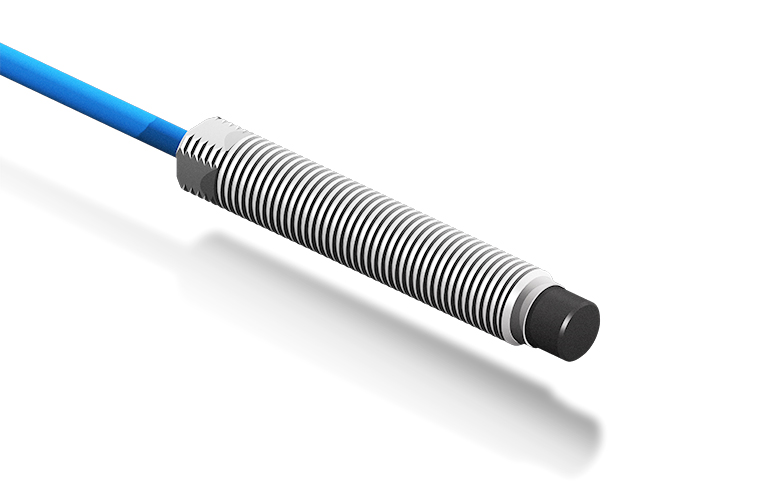

Mounting the proximity probe in the portable calibrator is based on the probe’s thread diameter, not the tip diameter. With our versatile adapter kits, you can easily accommodate thread sizes ranging from 0.25 in to 0.75 in (6 mm to 18 mm)—covering the vast majority of proximity probes used across the industry.
These adapters ensure a secure, precise fit for reliable calibration, regardless of the probe manufacturer.
